5. CIM UML Modeling Rules and Recommendations

5.1 Overview

This section describes rules and recommendations on how to use the UML to model electric utility domain information. The UML does not include a step-by-step model development process. It is a general-purpose modeling language that all modelers can use. The primary goal behind CIM UML modeling rules and recommendations is to ensure a well-formed, consistent semantic information model is maintained in order to facilitate communication and understanding among people working with the CIM.

Due to the evolving nature of the CIM, there are notable rule exceptions throughout the CIM UML. The rationale for retaining exceptions include:

• past practices that represent irregularities today, but corrections lead to breaking changes for end users;

• false positive rule violations reported by a validation tool

• special circumstances warrant the need for an exception

5.1.1 UML Concepts Used in the CIM

The CIM uses a very small subset of UML concepts. UML concepts and models can be grouped into the following concept areas: 1) static structure; 2) dynamic behavior; 3) implementation constructs; 4) model organization; and 5) extensibility mechanisms. The CIM only uses UML concepts in the static structure and model organization concept areas.

5.1.2 UML Static Structure Concepts

The CIM uses UML concepts that model utility domain concepts, their internal properties, and their relationships to each other. Utility domain concepts are modeled as classes, each of which describes a set of discrete objects that hold information. Utility domain concept properties are modeled as class attributes. The relationships between utility domain concepts are modeled as class associations or generalisations. Many classes share common structure using generalisation. Static structure concepts are viewed using class diagrams.

5.1.3 UML Model Organization Concepts

The CIM uses UML packages to organize modeling information. Packages are general-purpose hierarchical organizational units of UML models. The purpose of packages in the CIM is mainly for controlling working group ownership, with sub-packages mainly representing conceptual organization. This usage of the package structure allows for relatively easy movement of classes among packages without impacting concrete implementations. It also defines the area of responsibility for model managers.

The CIM also uses UML dependencies among packages to impose an overall model architecture. The contents of the packages must conform to the package dependencies and to the imposed model structure.

5.2 Model Structure Rules

Model structure rules address UML metamodel rules, and the structure, dependencies, and assembly of CIM packages.

5.2.1 UML Metamodel Rules

5.2.2 Package Structure Rules

Overview

The CIM is wholly contained in one top-level package named TC57CIM. TC57CIM contains all of the utility domain model elements.

TC57CIM Package Structure

The top-level "CIM" (formerly TC57CIM) package is partitioned into sub-packages corresponding to the IEC TC57 working groups and an additional package that describes the dependencies between the top-level IEC TC57 working group packages. The working groups are mapped to the corresponding UML top-level packages as follows:

• WG13 - Grid (formerly IEC61970) package,

• WG14 - Enterprise (formerly IEC61968) package,

• WG16 - Market (formerly IEC62325) package.

Both the legacy and new top-level package structure are shown in Figure 5‑1 and Figure 5-2 respectively.

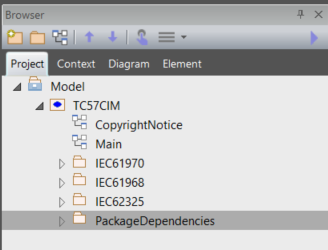

Figure 5‑1 - TC57CIM Package Structure

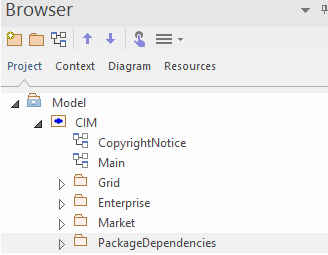

Figure 5‑2 - CIM Package Structure (New)

5.2.3 Package Dependency Rules

The concept of package dependencies is critical to both the understanding of model ownership among working groups and the practical integration or assembly of packages from different owners. An additional package is maintained outside of the IEC working group packages to describe the dependencies among the packages of each working group. This package, named “PackageDependencies” contains a figure illustrating these dependencies as shown in Figure 5-3 UML package dependencies (for illustration, not official CIM standard). As such the PackageDependencies package is itself dependent upon all the other major packages

The package dependencies should rarely change and therefore it makes sense for the CIM model manager role to maintain this diagram through the normal model issues submittal process. There is no need for each package owner to edit this package. By design there are no circular dependencies among the major packages. Issues are resolved through the CMM board.

The rule of CIM ownership is that any model linkages between packages are owned by the depending package. Thus any linkage (generalisation, association, dependency relationship, attribute type reference, or diagram reference) between e.g. IEC61968 and IEC61970 is owned by the IEC61968 package since it depends upon IEC61970. In CIM, we model associations as implicitly bi-directional, and this rule of package ownership applies to both ends of an association (i.e., for an association between e.g. IEC61968 and IEC61970, both association ends are owned by the IEC61968 package). This is the convention applicable to CIM model management regardless of UML association end ownership, which standard UML does not explicitly specify.

Further we expect that derived classes (specialisations) are within the dependent package (e.g. cross package specialisations would be modelled within IEC61968 packages since IEC61968 depends upon IEC61970). Classes in a given package are allowed to specialise classes owned by packages upon which the given package depends.

Additionally we prefer to have the source end of associations in the dependent package. This is not strictly required, but is a good practice and can be validated by the CIM validation tools used to generate the CIM documentation. Following this convention may allow shortcuts in reassembling combined models, but this is not a formally documented feature of Enterprise Architect.

Diagrams should only include links to anything from packages upon which the containing package depends. Not following this practice will cause such linked elements to disappear when reassembling the combined model. This is the main reason for having the separate “PackageDependencies” package with its overview diagram from Figure 5-4. Importing this package last ensures that all the dependencies appear on the diagram when assembling the combined model from its partitions.

When a model linkage spans working group packages, both parties should be aware of the linkage once models are combined. Such linkages should normally be discussed among working groups so that inappropriate linkages are not established. At this point any change that impacts that linkage should be agreed among the affected working groups.

This coordination extends to any potentially inherited attributes and associations when the linkage is generalization. Namely, the class inheriting attributes and associations from its base class that is in another working group package depends on types used for attributes and association ends of the base class. Therefore, any change in the base class will impact all those that inherit from that base class.

Types used for attributes in a class introduce dependencies that must be coordinated among the working groups as well.

Figure 5‑3. Top-level CIM (formerly TC57CIM) Package Dependencies

5.2.4 Package Assembly Rules

Each working group edits what it owns and merges what others own. With three working groups this results in six possible ways to exchange portioned model files between the groups as shown in Figure 5-4.

Figure 5-4 - Possible partition file exchanges between WG13, WG14 and WG16

A box in Figure 5-4 represents a complete UML model while the rows under the working group name correspond to package numbers in CIM.

With four working groups the number of possible exchanges increases to twelve and with five it becomes twenty and so on.

The procedure to update a package with a partition file corresponds to an arrow in Figure 5-4 and consists of the following steps:

• Export the partition file from the source model,

• Delete the corresponding package in the destination model along with any packages depending on it, and,

• Import the partition file in the destination model and subsequently import any packages depending on it in dependency order.

To properly obtain the correct UML package versions in a synchronized model, one can follow the steps in Figure 5-5. Complete synchronisation can be achieved by copying whole models as shown in Figure 5-5.

Figure 5-5 Complete synchronisation example

In Figure 5-5 a complete synchronisation of all model files is made in the following steps:

1. Synchronise the WG14 model with Grid (61970) from WG13,

2. Synchronise the WG16 model with Grid (61970) from WG13 and Enterprise (61968) from WG14,

3. Copy the complete and synchronised WG16 model to WG13 and WG14.

This procedure minimizes the number of steps.

The whole process can be summarized as simply merging packages from the owner of that package. The package can be either obtained directly from the owner or indirectly from the owner. The additional rules are that we merge packages via the procedure in clause 2.2.2 and we must follow the guidance for model ownership of cross package linkages as defined in clause 2.2.4. We stamp each major package with a version revision stamp which is representative of the package (as defined by our ownership rules) in any combined model which has followed this process.

The merging process can inadvertently change dependent models so care must be taken to not make changes that invalidate dependent models. For example if WG13 were to delete a class from which WG14 generalizes, that generalization owned by WG14 would be lost in any merge where the class was deleted. This is why it is important to track the dependencies and make or break such dependencies only when agreed on both sides.

It is vital when using Enterprise Architect tool to start with an empty model and import packages in dependency order as defined in the PackageDependendencies diagram shown in Figure 4. This assembly process will ensure that combined models are created properly. For example import the Grid (formerly IEC61970) package before Enerprise (formerly IEC61968), and import PackageDependencies package last. At any point when assembling packages, the model will be complete in regards to anything owned by the imported packages according to the definition of ownership in clause 2.2.4.

UML element Identity in Enterprise Architect UML is by internally generated GUID’s. Thus it is not equivalent to delete something and then enter the same data again. Such an operation will break linkages in the model, though the source model appears identical from the user interface. In Enterprise Architect you can change the names without breaking linkages. Some tools rely upon the name of the class or attribute not the Enterprise Architect GUID values for reference matching and will break linkages if names are changed. Modelling actions should be aware of both implications.

The best practice is to always import and work with the standard packages upon which your package depends so you get the proper GUID based linkages.

5.3 Package Rules

The purpose of packages in the CIM model is mainly for controlling working group ownership, with sub-packages mainly representing conceptual organization. This usage of the package structure allows for relatively easy movement of classes among packages without impacting concrete implementations.

CIM package names are intended to be unique among all packages without consideration of package hierarchy.

Package ordering is typically specified in dependency order. For example, the Domain and Core packages are ordered first in the UML. The printed documentation will use this package ordering. If no clear dependency relation exists, order packages alphabetically.

To facilitate model management and evolution (and minimise IEC documents generation time), while preserving the means to print official documents at any time in the proper format, we have the following three special kinds of packages

“Inf” is the prefix used to denote informative CIM UML sub-packages. This is to avoid name clashes among normative and informative packages (e.g., ‘Core’ vs. ‘InfCore’), and to make informative sub-packages obvious through their name. Note that this will apply to all packages that start with this prefix (e.g., 'InfCore' as well as 'Informative').

The content of the informative package, including any sub-packages and its content, recursively, is considered as informative in the sense of IEC documents and is therefore by default excluded from the document generation. However, the CIM UML tool has an option to enable printing the informative content as well, which is useful for e.g., sharing documentation of the current work in an informative sandbox with the working group members, without impact to the stable, normative parts of the model.

An informative package can be defined at any depth in the CIM UML model. The only requirement is the “Inf” prefix in the package name. It is recommended to specify “Inf” packages as “private” packages in Enterprise Architect package properties, so they can be filtered out of diagrams showing the sub packages.

“Doc” is the prefix used to denote those CIM UML sub-packages that contain diagrams used for the IEC document template only, and that should not be printed with the content of the regular model. The sub-package of "ABC" with the name "DocABC" will be matched, and considered as informative package from the perspective of automatic document generation (i.e., it will be skipped), but it still can be referenced from the IEC document template to include the diagram, for instance in its introductory examples section.

It is recommended to specify “Doc” packages as “private” packages in Enterprise Architect package properties, so they can be filtered out of diagrams showing the sub packages.

5.3.1 5.3.1 Package Naming Rules

Package names start with upper case (UpperCamelCase rule). Package names must be unique across the whole CIM.

5.3.2 Package Specification Rules

5.4 Class Rules

The following UML class features are used in CIM:

• Name
• Documentation
• Stereotype

In CIM, a class is used to describe either domain entities or various data types specific to the CIM domain:

• <<Primitive>> Primitive data types as Booleans, Float, String etc. Primitive cannot have attributes.

• <<CIMDatatype>> Simple data types specific for the CIM, e.g. ActivePower, Resistance etc. CIMDatatype has at least three attributes: value, unit and multiplier. The “value” attribute is of Primitive type, and unit and multiplier are of an enumeration type. When required additional attributes can be defined to describe for example “demoninatorUnit” and “denominatorMultiplier”, but only one “value” attribute is allowed.

• <<Compound>> Compound data types specific for the CIM, e.g.StreetAddress etc. Compound has no identity and is a simple group of related attributes, Compound may have attributes whose types are Primitive, enumeration, CIMDatatype or Compound. A circular dependency among Compound types is to be avoided.

• <<enumeration>> Enumerations, e.g. UnitSymbol, UnitMultiplier, Currency, etc.

• None of the above stereotypes. A domain object that participates in inheritance and/or association relationships with other domain objects. Most of domain objects inherit from the class IdentifiedObject and thus get the identifier and one or multiple names.

CIM classes with a stereotype other than <<deprecated>> are types that never participate in relationships (i.e., no associations, no inheritance), but are used as types for attributes.

CIM does not use abstract classes, because CIM is in itself an abstract model. In contrast, profiles may distinguish between concrete and abstract classes.

CIM does not use association classes, for the sake of keeping the used subset of UML to the minimum that is well supported by tools and well understood by the wide community.

CIM class names are unique among all classes residing within the CIM top-level package without consideration of the package hierarchy.

Classes should be ordered alphabetically or in order of importance or by logical grouping. We do not enforce alphabetically ordering automatically in the UML tool. The order of classes in the UML tool with be the order of classes printed in the IEC document.

5.5 Attribute Rules

The following UML attribute features (i.e. available in the "Properties" Pane in Sparx EA) are used in CIM:

• Name, is always used and must be unique among all levels of specialisation.
• Type that is one of the stereotyped classes (Primitive, CIMDatatype, Compound, enumeration). When choosing type, ensure you select it from the list of existing types rather than simply type the text into Enterprise Architect. Attention on Primitives: use CIM Primitive datatypes (e.g., String, Boolean), not default UML ones (string, boolean).
• Scope is always public
• Multiplicity is always [0..1]
• Initial Value, if used, always denotes a constant for all instances of the class where the attribute belongs, and the attribute has to be set as both static and constant.
• Documentation (i.e. the Notes pane in Sparx EA). The documentation should not use or rely upon special formatting. Plain text is assumed. It is suggested to avoid special characters here also.
• Stereotype, where applicable, can temporarily be used to describe the development state of the attribute or use case that initiated the creation of the attribute. Once the attribute is fully incorporated in the model the stereotype is removed.

Attribute names are unique within a classifier and Enterprise Architect will enforce this.

The attribute order should normally be alphabetical unless there is some clear reason to group like attributes together. We do not enforce alphabetic ordering in the UML tool.

5.6 Association Rules

Associations describe how classes are related. Only classes describing domain objects, i.e. classes without data type stereotypes such as <<enumeration>>, <<Primitive>>, <<Compound>>, or <<CIMDatatype>>, may participate in associations.

An association has two ends referred to as association ends. CIM associations have unspecified direction but have both ends specified which means they are implicitly bi-directional (i.e., it is possible, through end names, to navigate from A to B and from B to A).

The association description and association name are not specified. These become a maintenance problem if specified and also show up on diagrams by default. Instead, we specify the association end names and descriptions.

The UML association features used in CIM are as follows:

Stereotype <<informative>>, only in case the association is informative. No other stereotypes are allowed.

The UML association end features used in CIM are:

• Association end name;

• Association end multiplicity;

• Association end description.

No other options should be used, although some association ends in CIM are defined as aggregation (= shared).

Note that, depending on local user settings for EA tool:

it may happen to create by default a directed association, so ensure that the direction for association and both its ends is “Unspecified”;

if using aggregation from the toolbox, the diamond may be on unexpected side of relationship, so always create first a simple association.

Furthermore, to facilitate the correct dependency processing (see 2.2.2), draw an association from a class in the depending package (source end) towards a class in the dependent package (target end). For example, an association between a class in "Enterprise" (formerly the "IEC61968" package) and a class within "Grid" (formerly the "IEC61970" package) would be drawn from (the source end of) the class defined within "Enterprise" towards (the target end of) the class within "Grid". This since "Enterprise" depends upon the "Grid" package.

There appears to be no clear manner to control the association end ordering (within the context of a class) in the Enterprise Architect tool so this is an unmanaged aspect of the UML model. In fact, UML does not specify association ends are owned by the class, they are by default owned by the association itself.

Association end names should be unique among all specialisations of a class. For example, if IdentifiedObject associates to the Name class with an end name of “Name”, no specialisation of IdentifiedObject may create another association whose end name is “Name” regardless of the class to which it associates. Note that any number of associations from other classes may use the same name (e.g. “IdentifiedObject”) as the association end name on the IdentifiedObject end of the association, as long as the prior rule of uniqueness among specializations is respected.

Multiplicities are used to describe the number of expected objects at each end of an association as well as if an attribute is optional or mandatory. The following multiplicities are common for association ends in CIM:

• 0..1 an object may or may not exist,

• 1 an object always exists,

• 0..* any number of objects may exist,

• 1..* at least one object exists.

Multiplicities shall be chosen to specify what can be expected in the domain. Multiplicity minimum does not mean all profiles must include the association, but if a profile does include the association it should respect the minimum. Note that minimum multiplicities are normally not enforced by implementations at all times. For example in the middle of a transaction one may require violation of minimum multiplicities.

5.7 Enumeration Rules

Enumeration literals are attributes within an <<enumeration>> type. The following UML attribute features are used in CIM:

Name, always used and must be unique among all levels of specialisation.

UML stereotype <<enum>>.

(enumeration literal has no type by definition).

(enumeration literal scope is public by definition).

(enumeration literal has no multiplicity by definition).

Initial value, if used, denotes a code that has semantic binding. If used, the code must be unique among all the codes for literals within the containing enumeration type. Also, either all or no literals within an enumeration type have a code.

Documentation. The documentation should not use or rely upon special formatting. Plain text is assumed. It is suggested to avoid special characters here also.

Other than <<enum>> or <<deprecated>> attribute stereotype can temporarily be used to describe the development state of the attribute or use case that initiated the creation of the attribute. Once the literal is fully incorporated in the model, the stereotype is removed.

Like for attributes, literal names are unique within a classifier and Enterprise Architect will enforce this.

There is no ordering required or reinforced; the order found in the UML model will be the order of printing.

5.8 Diagram Rules

The following UML diagram features are used in CIM:

• Name

• Documentation

Diagrams should not use shadows, colours or diagram frames when printing model documents.

Diagrams should use A4 page size.

Each package should typically include at least one diagram that contains all the classes in a package, and an arbitrary number of other diagrams.

In general, when editing diagrams, it is possible to set show/hide attributes or relationships for a diagram, to display the desired subset of the model.

Diagram names are used for model document generation and should be unique across the whole CIM model. The CIM UML tool documentation generation allows for the combination of containing package (unique in model) and diagram name to uniquely identify a diagram, but we strive to keep diagram names unique across all packages.

Diagrams should be placed inside of packages (the normal case) or classes (e.g. in Dynamics package). The order of diagrams in the package is retained and should be from most general to specifics. Otherwise, diagrams should be in alphabetical order.

5.9 Element Description Rules

Make sure to add a description to the UML elements (package, diagram, class, attribute, association ends etc.) when creating them. The description shall explain the meaning of the entity as clearly as possible. It is often useful to search dictionaries and the web for good descriptions.

Use full sentences with proper upper case start and ending period. These get put into IEC documents and must conform to standard editing of such a document. Any references to standards should be specified in a manner compatible with inclusion in IEC documents. The same is true of units, variable names, or other IEC editorial policies.

Make sure to update the description every time you do a modification to existing element (e.g., when changing name of an association end or a class, do extended search in the overall model and ensure to update the in-text references to the element whose name changes).

Document the element itself, not its related or contained elements. Details of attributes should be documented on the attributes themselves, rather than on the class that contains them.

Document the purpose of the attribute. Avoid "This attribute is used ..." or similar.

Document the purpose of association end. Avoid "A is related to one or more B" since UML shows it already.

Avoid using CIM class names in the description/notes. For example, prefer “usage point” over “UsagePoint”. In some rare cases an explicit reference to an attribute may be required for clarity (e.g., “phase information is available in ‘Terminal.phases’.”), but such references create a maintenence problem.

Avoid using mark-up in the documentation (e.g., bold, lists, superscripts). Note this means avoid using variable names in equations in the text to also conform to the IEC documentation rules which require italic type for variable names.

5.10 Inheritance Rules

Inheritance is used to specialise an existing class. The inheriting class is more specific than the base class. Inheritance is the strongest possible dependency; it is often misused and should be used with care (note: everything that can be expressed through inheritance could also be expressed through composition).

The CIM is currently using a single type inheritance hierarchy and the use of multiple inheritance is not allowed (except as specified for extensions, see 5.4).

Inheritance relationship must be drawn from the more specific class to the more general class. In case the classes from two top-level packages are involved, the subclass must be in the dependent package, and inherit from the class in a package upon which it depends (see 2.2.2).

Inheritance should never create situations where attribute names or role names are duplicated or “override” within the inheritance linage.

5.11 Stereotype Rules

5.11.1 General and <<Deprecated>> Stereotype Rules

This stereotype is recognised by the CIM UML validation and document generation tool and can be applied to any of the UML concepts defined below. The typical usage of the <<deprecated>> stereotype is for the purpose of preserving backwards compatibility for the normative, already published content, during a release or two, while indicating to the users that the item is likely to actually be removed in the future. This is a graceful means of phasing out obsolete or re-factored elements, and leaving some time to the users to provide implementation in terms of the new features replacing those marked with <<deprecated>>.

It is possible and supported by the CIM UML tool to have multiple stereotypes on an element (e.g. <<deprecated, CIMDatatype>>).

The <<deprecated>> strereotype may be used on attributes, associations, classes, packages, and diagrams in the UML model. It is recommended when deprecating a package to deprecate all its contained classes as well. When deprecating a class it is recommended to deprecate all associations in which it is involved and all its native attributes. Inheritance from a deprecated class is less clear and no general guidance is given, except to avoid this situation if possible.

5.11.2 Package Stereotype Rules

5.11.3 Class Stereotype Rules

5.12 Namespace Rules

Namespaces are specified at level of packages in the CIM UML model. The namespaces apply to classes, attributes, association ends, data types (<<CIMDatatype>>, <<Compound>>, <<Primitive>>, and <<enumeration>>) and enums. Namespaces are useful for marking the source of CIM models for either standards or extensions.

Namespaces are derived from the rules given below.

Namespaces applied at the package level propagate to sub packages without a namespace and any contained classes. Namespaces on classes propagate to contained attributes. Namespaces on classes propagate to both ends a connected association if the association is owned by the package. Namespaces on cross package associations are propagated from the owning class as defined in clause 2.2.4 UML cross package dependencies and ownership.

If a namespace is specified at a subpackage level it takes precedence over the containing package.

The form is a tag of named “nsuri” with the value being the namespace URI value. A second tag named “nsprefix” whose value is used to specify the XML prefix. (The “nsuri” tag is similar to how CIMTool uses the tag named “uml:baseuri” with the value being the namespace URI, where “uml” is defined as “http://langdale.com.au/2005/UML#”.)

The namespace tagged value approach can be extended to allow specific namespace assignment to classes, attributes, association ends, datatypes, and enumeration literals. Such extensions are not required for the CIM information model or extensions to the information model because all such features can be added to packages with the appropriate namespace, but the same approach could be used for profiles in UML However, document does not address profiles in UML.

For example the base cim 61970-301 we use: [Note the example does not match proposal.]

nsprefix=cim

nsuri=http://iec.ch/TC57/2015/CIM17

61970-302 nsprefix=dycim nsuri=… dynamics…

61968-11 nsprefix=dcim nsuri= http://iec.ch/2015/dcim12

62325-301 nsprefix=mcim nsuri=htt://iec.ch/ …. Market…

[Proposed] The IEC is taking an approach of using a consistent namespace for all standard CIM within one consistent version of total CIM. Thus namespaces are only specified one time at the top-level package (i.e. the CIM top-level package) and version would be bumped when any subpackage changes. Therefore the namespace approach is useful to encode this single namespace in the UML for standard CIM canonical model plus namespace for any extension packages.

5.13 Documentation Rules
